• Full rebuild of leaking pondless waterfall system
• Hopkins, Minnesota
• Completed in 2025
• $8,000 project cost
• 6 ft waterfall length
• Structural repair, liner replacement, and system upgrade

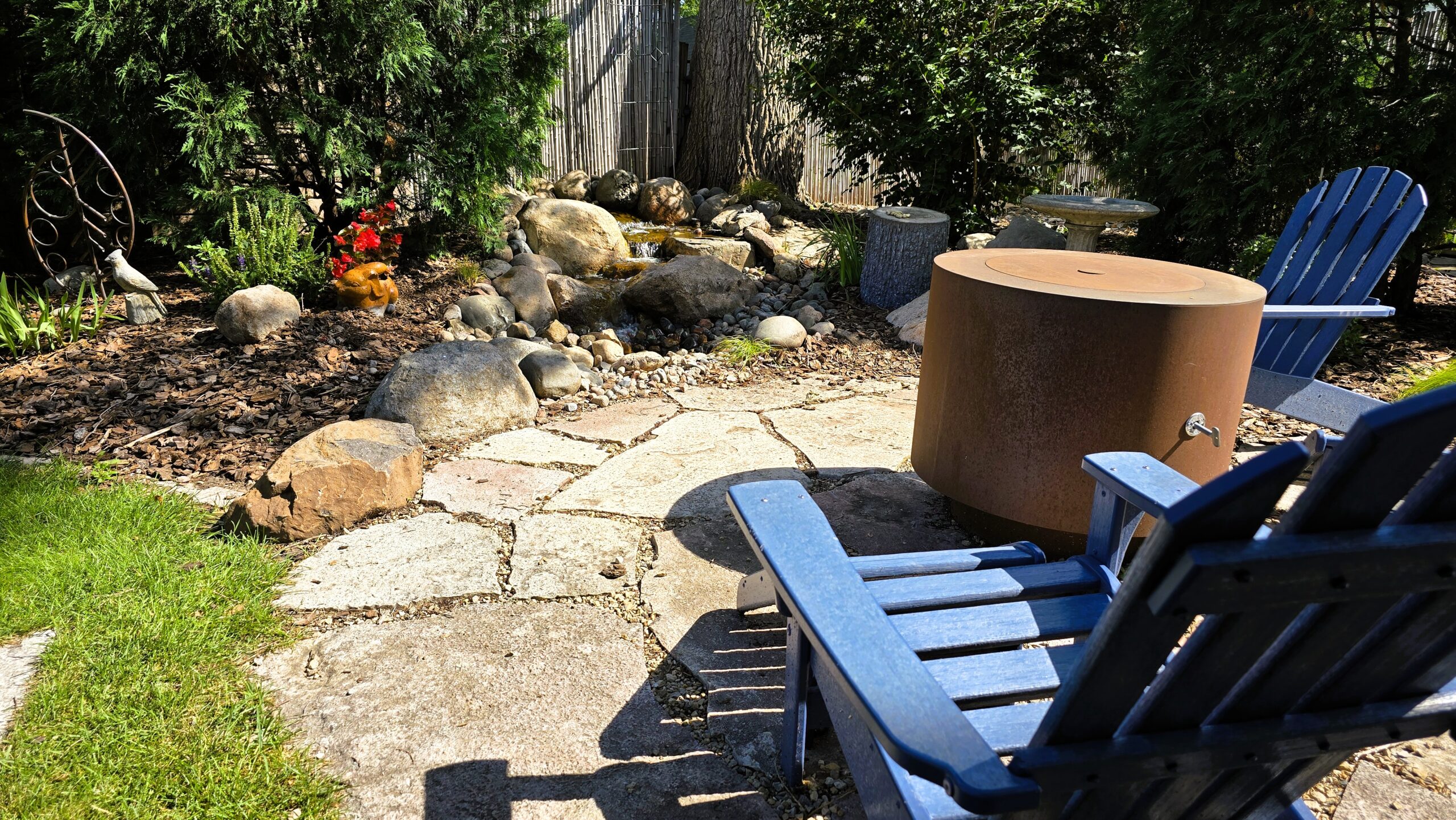

Pondless waterfall integrated into a shaded backyard seating area in Hopkins, Minnesota, designed for long-term reliability and low maintenance

This 6-foot pondless waterfall in Hopkins, MN is a complete rebuild — and a real-world example of what happens when water features are constructed without proper fundamentals.

The original system had been leaking for years. Once dismantled, the causes became clear: a liner that was too short, heavy stones compressing liner overlaps, and likely pressure from nearby tree roots. Temporary fixes had only delayed the failure.

We removed the entire feature, identified all failure points, and rebuilt the system correctly from the ground up.

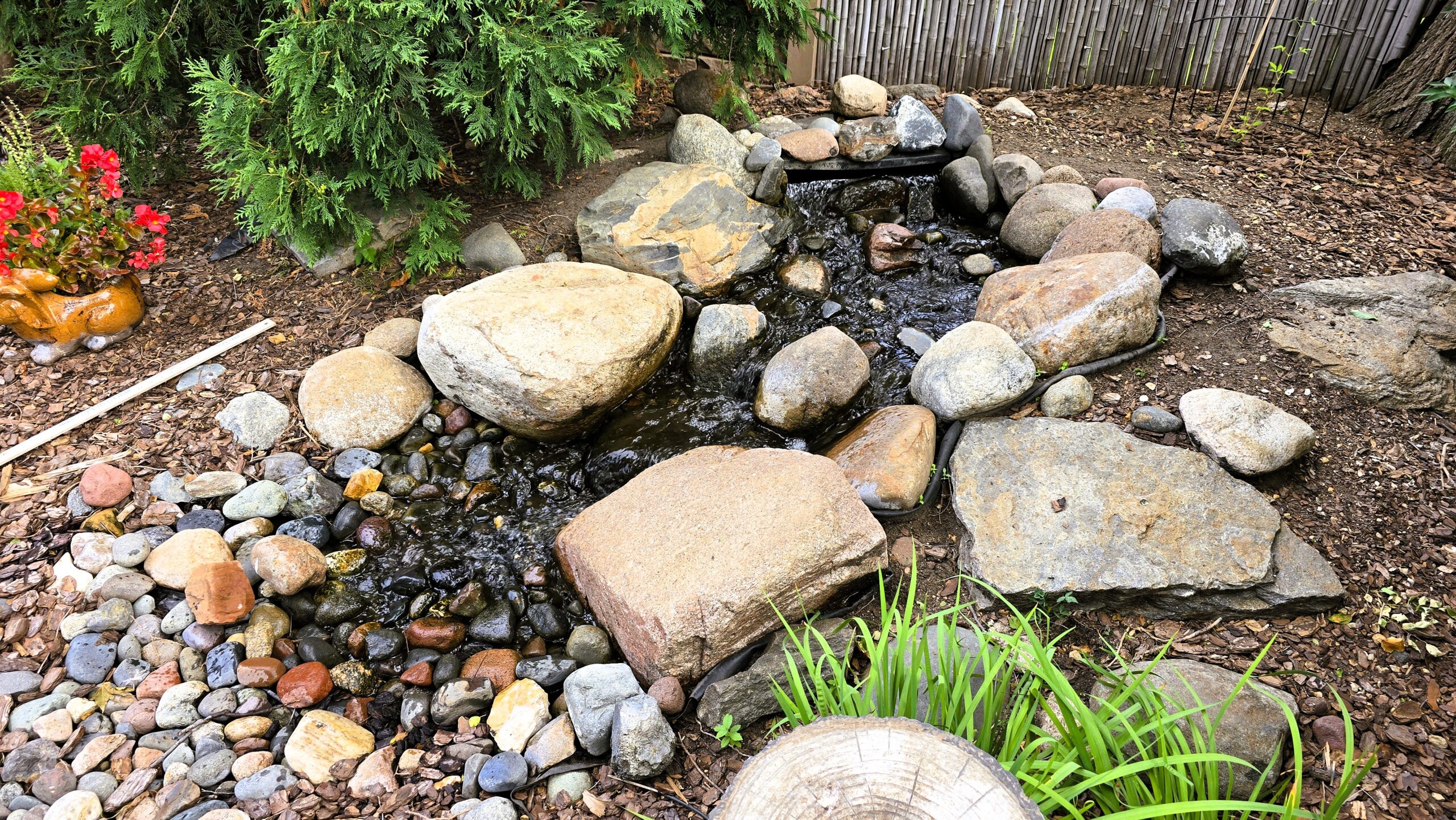

Original pondless waterfall with ongoing leaks caused by improper liner installation and structural issues

At first glance, the waterfall looked functional — but hidden issues were causing ongoing water loss. Improper liner installation and structural pressure led to leaks that only a full rebuild could solve.

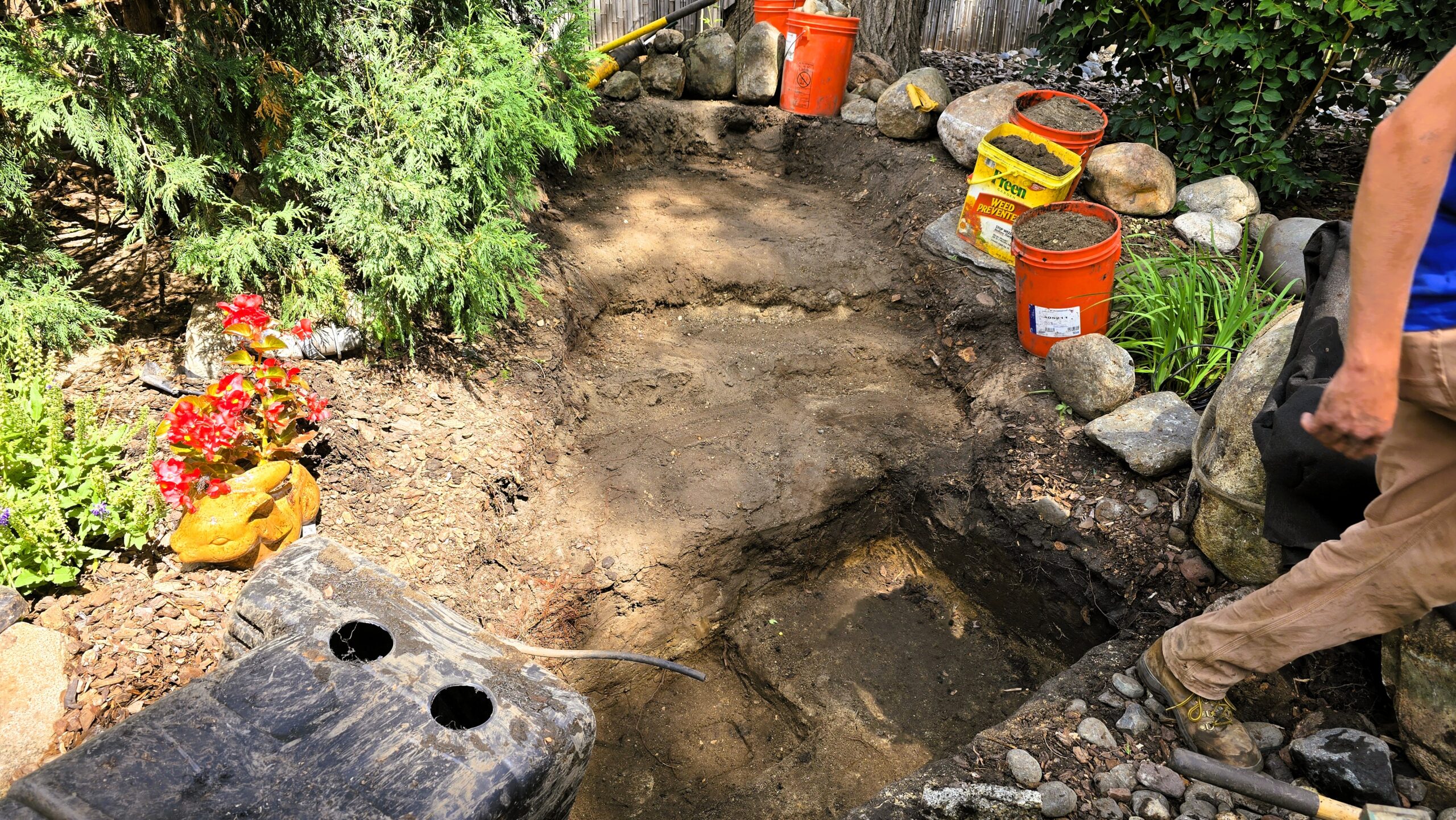

Full teardown of the existing system to identify and eliminate the source of leaks

System Teardown and Problem Identification

To properly address the ongoing leaks, the entire pondless waterfall system was fully dismantled. This step was critical to expose hidden problem areas that could not be identified from the surface.

Once opened, several key issues became immediately clear. The original liner was too short in critical areas, overlaps had been compressed by heavy stone placement, and sections of the system had shifted over time, likely due to surrounding root pressure.

During this stage we:

• removed all existing stone and gravel
• exposed and inspected the basin and stream structure
• identified liner failures and weak overlap points
• evaluated structural settling and drainage issues

This process allowed us to clearly define the root causes of failure and set the foundation for a proper, long-term rebuild.

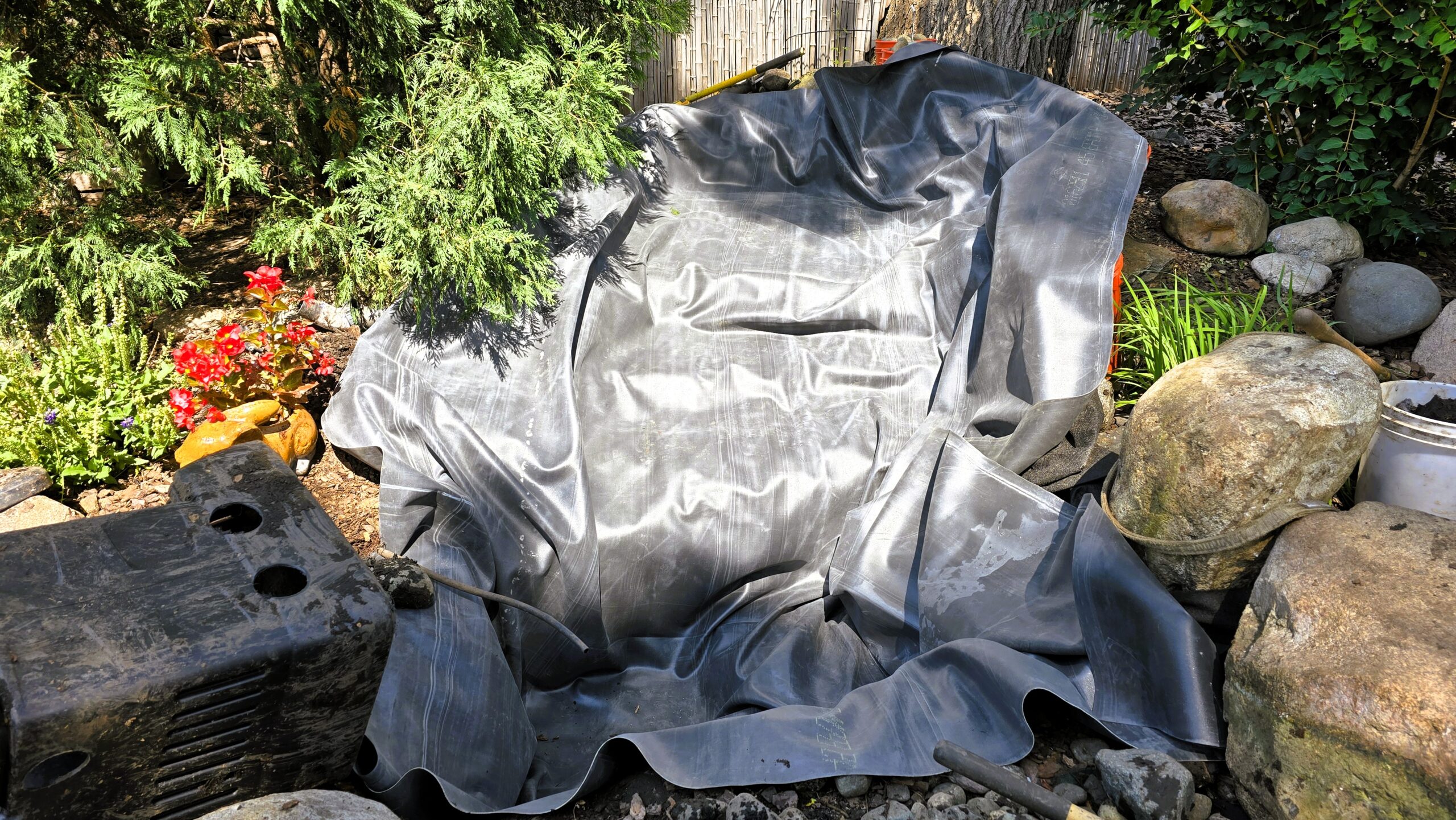

A new one-piece liner was installed throughout the basin and stream to eliminate seams and prevent future leaks. Proper elevation and protection from stone pressure were critical to long-term system reliability.

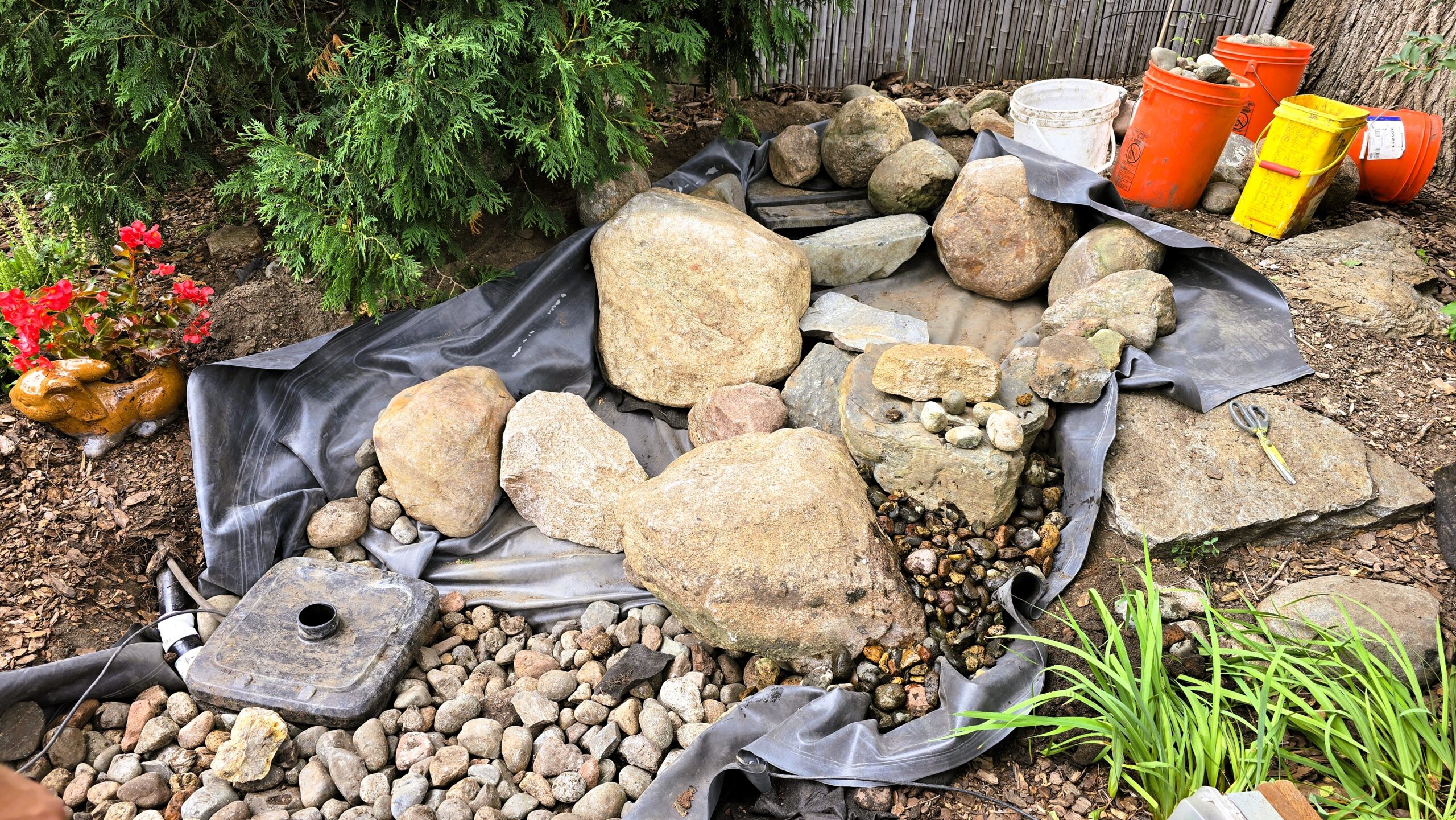

The waterfall was rebuilt with correct stone placement, improved drainage, and controlled water flow. Each element was positioned to reduce pressure on the liner and ensure stable, long-term performance.

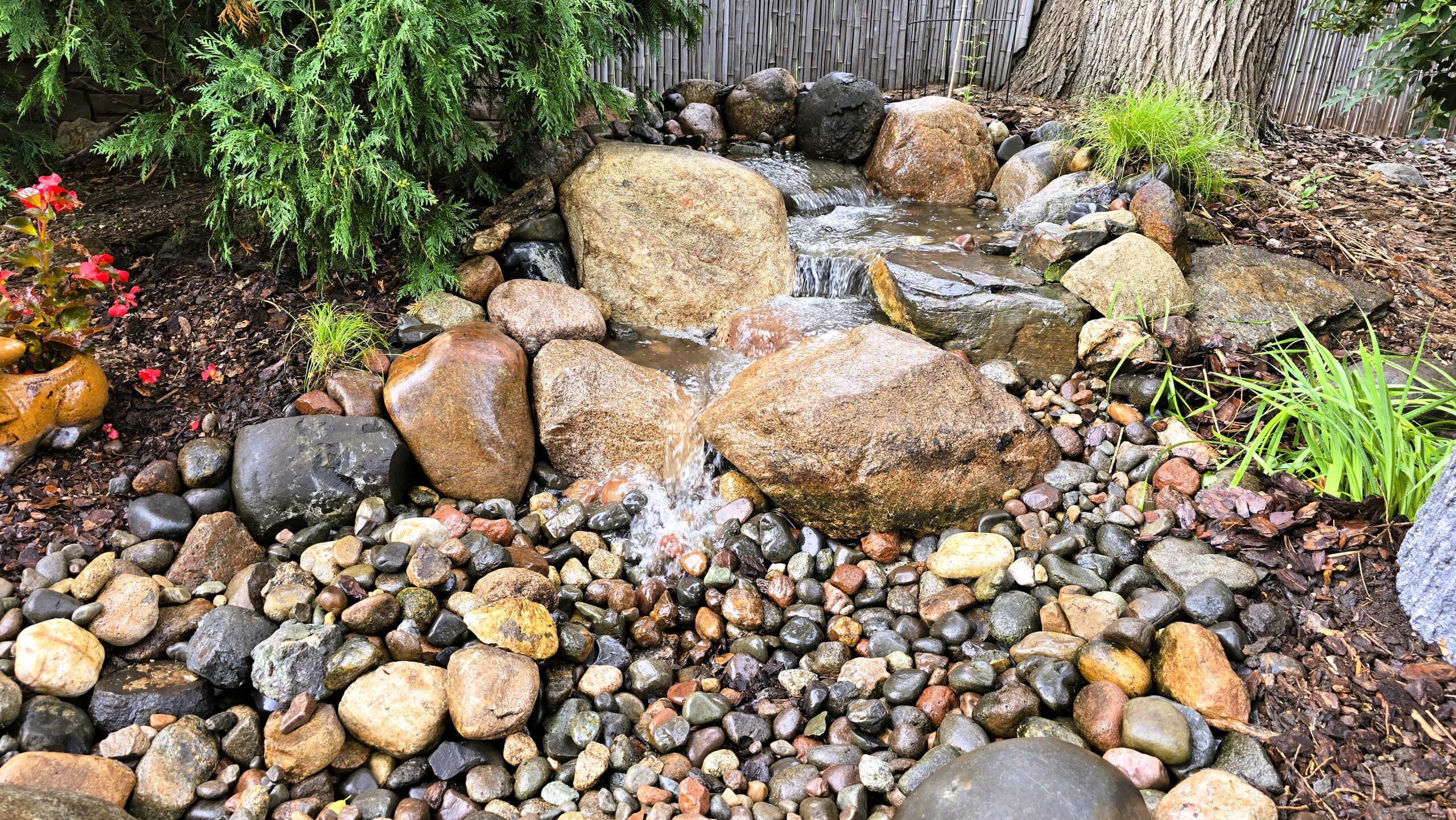

The finished waterfall integrates naturally into the backyard space, providing a clean, reliable system with improved flow, reduced maintenance, and long-term durability.

Waterfall Reconstruction and Structural Improvements

With a properly installed liner in place, the waterfall was rebuilt with a focus on structure, flow control, and long-term stability. Each stone was positioned to direct water correctly while minimizing pressure on critical areas of the liner.

Drainage and water management were also improved to ensure that any bypass water would safely return to the basin instead of escaping the system.

During this stage we:

• rebuilt the waterfall structure with proper stone placement
• integrated the diffuser for controlled water distribution
• created a drainage path behind framing rocks
• stabilized the system to prevent future settling

These improvements restored proper water flow and ensured the system would perform reliably over time.

With the rebuild complete, the system now operates reliably with proper structure, controlled water flow, and long-term durability.
